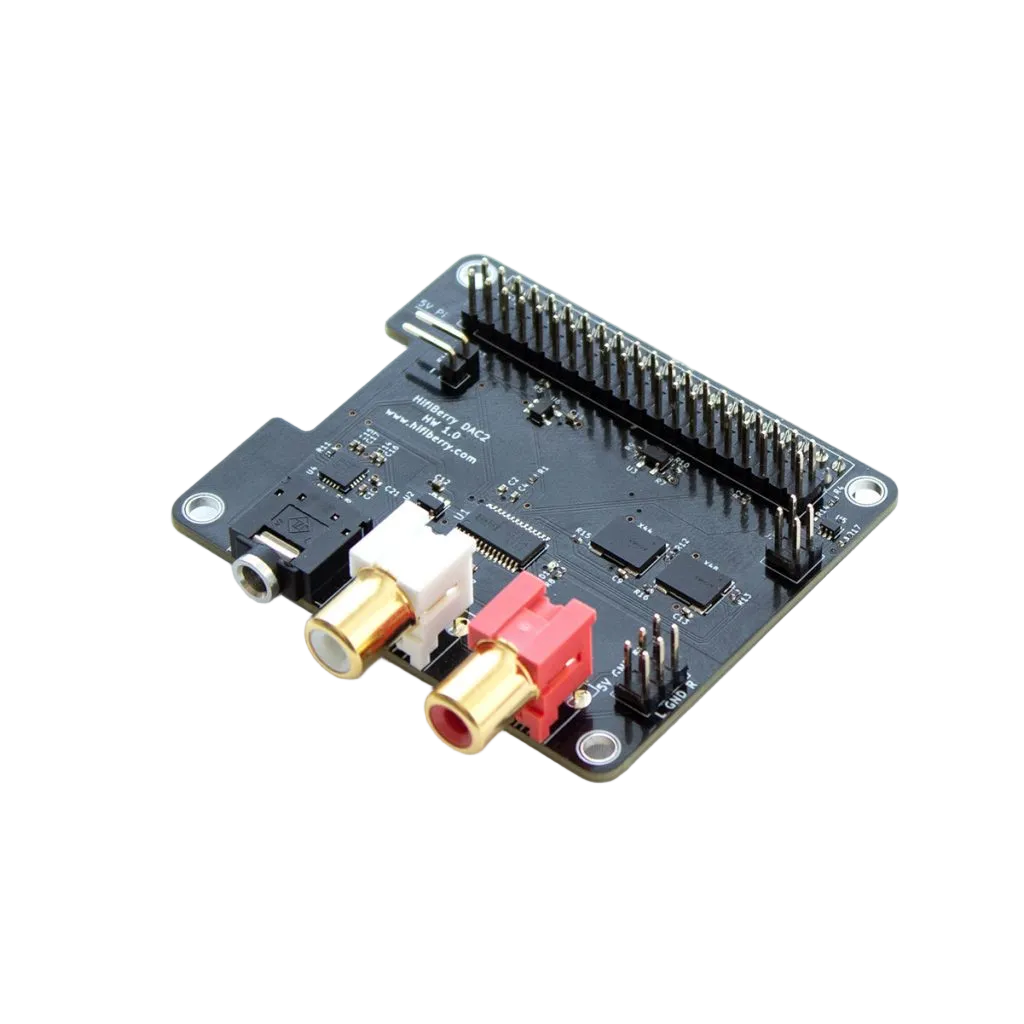

DAC2 Pro

The HiFiBerry DAC2 Pro is a high-resolution digital-to-analog and analog-to-digital converter for the Raspberry Pi (newer models with 40 pin GPIO connector). This is a special sound card for the Raspberry Pi, optimised for one specific use case: affordable high-quality audio playback.

• Stereo output
• Integrated headphone amplifier
• can be equipped with an additional Digital Signal Processor (DSP) for flexible audio processing
• Dedicated 192kHz/24bit high-quality Burr-Brown DAC
• Hardware volume control for DAC. You can control the input and output parameters using “alsamixer” or any application that supports ALSA mixer controls.
• Connects directly to the Raspberry Pi, no additional cables needed
• No soldering, comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi, it is conform to the Raspberry Pi hardware-attached-on-top (HAT) specification.
• Compatible with all Raspberry Pi models with a 40-pin GPIO connector
• Directly powered from the Raspberry Pi, no additional power supply
• Two ultra-low-noise linear voltage regulators for optimal audio performance
• Low-jitter dual-domain clock for optimised clock decoupling from the Raspberry Pi
• HAT compliant, EEPROM for automatic configuration
• Gold plated RCA output connectors
• Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board onto the Raspberry Pi
• Audio connector to connect analog audio amplifier
